Description

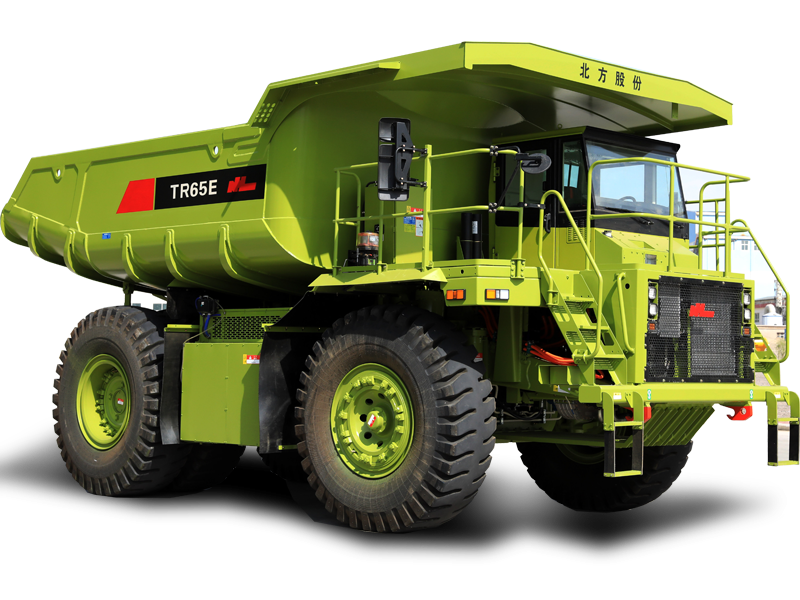

Heavy-Duty Electric Hauler
The TR65E is a high-performance electric transport vehicle engineered for demanding industrial and mining environments. With a powerful 700 kW peak motor, large battery capacity, and advanced control systems, it delivers both strength and efficiency on tough terrain.
This vehicle supports a 60-ton load with a total weight of 101 tons, offering impressive hauling capability. Powered by a permanent magnet synchronous motor and a 423 kWh liquid-cooled battery, it ensures consistent performance across long shifts.
The TR65E is built for steep and uneven terrain, with strong climbing ability even under full load and a tight turning radius of just 9.5 metres. It handles extreme climates from -40°C to +55°C and operates reliably in high-humidity environments.
Fast-charging is supported through a dual 500A charging system, restoring 25% to 95% battery in just 53 minutes. With a durable 5-speed AMT transmission, high torque output, and spacious dump body (up to 40m³), the TR65E is the ultimate choice for heavy electric hauling.
| Category | Item | Value |
|---|---|---|
|
Vehicle Dimension |
Length (mm) |
9300 |
|
Width (mm) |
5228 |
|
|
Height (mm) |
4500 |
|
|
Wheelbase (mm) |
4170 |
|
|
Weight Parameters |
Rated Load (t) |
60 |
|
Curb weight (t) |
41 |
|
|
Gross vehicle weight (t) |
101 |
|
|
Empty Axle Load Distribution |
Front: 45.5% |
|
|
Rear: 54.5% |
||
|
Loaded Axle Load Distribution |
Front: 32.5% |
|
|
Rear: 67.5% |
||
|
Performance |
Max speed (km/h) |
60 km/h (limited to 7 km/h when fully loaded |
|
Turning radius (mm) |
9500 |
|
|
Max Gradeability (unloaded) (%) |
30 |
|
|
Max Gradeability (loaded) (%) |
15 |
|
|
Continuous climbing ability |
||
|
>=12 km/h (loaded) |
||
|
>=28 km/h (unloaded) |
||
|
Operating temperature range (°C) |
-40 to +55 |
|
|
Operating humidity range |
0-100% |
|
|
Vehicle Communication |
Communication |
CAN bus |
|
Suspension System |
Front Axle Electric Drive |
|
|
Traction Motor |
Type |
Permanent Magnet Synchronous |
|
Rated/Peak Power (kW) |
420 / 700 |
|
|
Rated/Peak Torque (Nm) |
2200 / 3600 @ 60s |
|
|
Operating Voltage (V) |
618 |
|
|
Weight (kg) |
870 |
|
|
Cooling Method |
Air cooling |
|
|
Transmission |
Type |
5-speed AMT |
|
Gear Ratios |
7.07 |
|
|
4.56/4.56 |
||
|
2.98/2.98 |
||
|
2.02/2.02 |
||
|
1.38/1.38 |
||
|
1 |
||
|
Max Torque / RPM |
3600 Nm / 3500 rpm |
|
|
Power Battery |
Voltage (V) |
600 |
|
Capacity (kWh) |
423 |
|
|
Cooling Method |
Liquid Cooling |
|
|
Heating Method |
Liquid Heating |
|
|
Charging |
Charging Port |
Dual Socket |
|
Max Charging Current (A) |
500 |
|
|
Max Charging Power (kW) |
360 |
|
|
Charging Time (SOC 25%-95%) (min) |
53 |
|
|
Hydraulic System |
Dump Body Volume |
Flat: 32 m³ (41.9 yd³) |
|
U-shape: 40 m³ (52.3 yd³) |
||
|
Rated Working Pressure (MPa) |
– |
|
|
Oil Tank Capacity (L) |
– |
|
|
System Weight (kg) |
– |
|
