TR50W
Water Truck

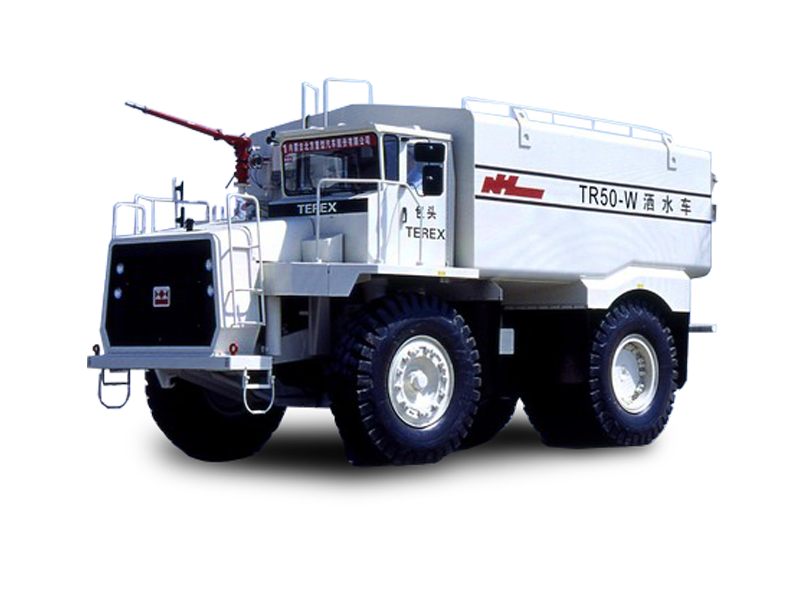

Aury NHL TR50W

Request More Information

Description

The Aury NHL TR50W is a heavy-duty water truck designed for mining and construction sites, providing reliable dust suppression and water distribution. Built on a robust chassis, the TR50W features a high-capacity water tank with a volume of up to 50 cubic meters. Its hydraulic spray system includes powerful water cannons capable of a maximum range of 45 meters and adjustable spray widths between 10 to 30 meters, ensuring efficient coverage over large areas. The truck is equipped with an off-center water pump capable of delivering up to 100 cubic meters of water per hour, ensuring consistent performance under heavy-duty conditions. Designed for optimal stability, the TR50W maintains a well-balanced weight distribution between its front and rear axles, even when fully loaded. Its durable construction, air suspension, and efficient water management system make it a key asset in maintaining safe, dust-free environments in large-scale operations.

Category Item Value
Water Tank Capacity
Tank Material
Carbon Steel (Stainless Steel)
Tank Volume (m³)
50 / 42
Hydraulic System Pressure (MPa)
14
Hydraulic Max Flow Rate (ml/r)
56.5
Off-center Pump Lift (2950 rpm) (m)
80
Spray System
Water Cannon Max Range (m)
45
Spray Width (m)
10 – 30
Spray Depth (m)
2 – 6
Speed Parameters
Max Speed (unloaded) (km/h)
65
Max Speed (loaded) (km/h)
40
Speed for Spraying Operations (km/h)
5 – 20
Weight Parameters
Chassis Weight (kg)
24,000
Water Tank Weight (kg)
9,260
Vehicle Empty Weight (kg)
33,260
Rated Load Capacity (kg)
42,000
Total Vehicle Weight (kg)
75,260
Weight Distribution
Unloaded Front/Rear Axle (%)
49 / 51
Loaded Front/Rear Axle (%)
34 / 66
Dimensions
Length
8250
Width
4052
Height (mm)
4795
