Aury NHL TR100E
Request More Information
Description

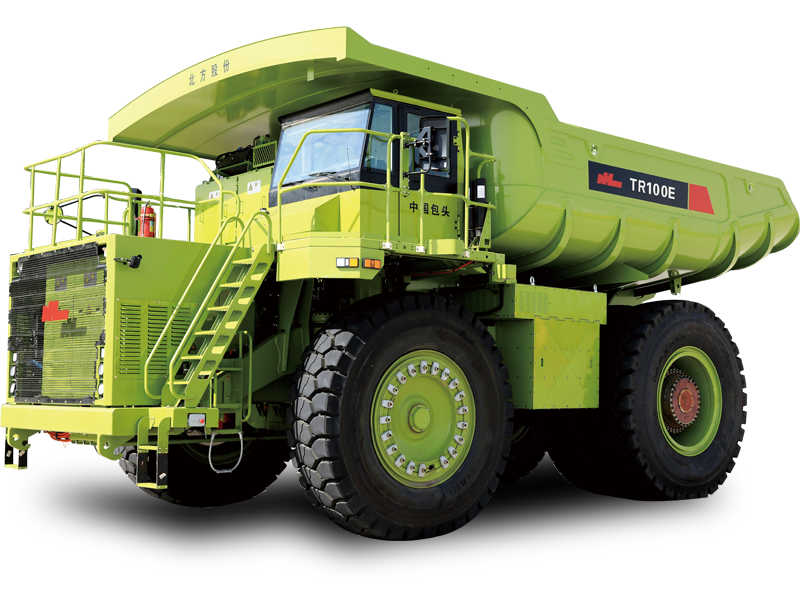

High-Power Electric Mining Truck
The TR100E is a heavy-duty electric mining vehicle engineered for strength, efficiency, and environmental performance. With a 91-ton payload capacity and a gross vehicle weight of 158 tons, it’s built for demanding haulage tasks in industrial and mining settings.
Driven by a permanent magnet synchronous motor delivering up to 1265 kW of peak power and an enormous 21,500 Nm of torque, the TR100E ensures excellent climbing power and control. Its top speed reaches 56 km/h, with a tight 10.75 m turning radius, and it maintains stable performance even on 15% inclines when fully loaded.
Powered by an 850V / 770 kWh battery system, this model includes liquid cooling and heating and can be fast-charged to 95% in just 48 minutes using a 720 kW dual charging port. The battery system is designed for endurance with 4-module integrated cooling and heating.
Its U-shaped dump body carries up to 60 cubic meters (SAE standard), while onboard systems handle extreme conditions from -40°C to +55°C and 100% humidity.
| Category | Item | Value |
|---|---|---|
|
Vehicle Dimension |
Length (mm) |
10907 |
|
Width (mm) |
5930 |
|
|
Height (mm) |
5930 |
|
|
Wheelbase (mm) |
4570 |
|
|
Weight Parameters |
Rated Load (t) |
91 |
|
Curb weight (t) |
67 |
|
|
Gross vehicle weight (t) |
158 |
|
|
Empty vehicle axle load distribution |
Front: 49% |
|
|
Rear: 51% |
||
|
Loaded Axle Load Distribution |
Front: 34% |
|
|
Rear: 66% |
||
|
Performance |
Max speed (km/h) |
56 km/h (limited to 7 km/h when fully loaded) |
|
Turning radius (mm) |
10750 |
|
|
Max Gradeability (unloaded) (%) |
24 |
|
|
Max Gradeability (loaded) (%) |
15 |
|
|
Continuous climbing ability |
||
|
>=15 km/h (loaded) |
||
|
>=32 km/h (unloaded) |
||
|
Operating temperature range (°C) |
-40 to +55 |
|
|
Operating humidity range |
0-100% |
|
|
Vehicle Communication |
Communication |
CAN bus |
|
Suspension System |
Front Axle Electric Drive |
|
|
Traction Motor |
Type |
Permanent Magnet Synchronous |
|
Rated/Peak Power (kW) |
655 / 1265 @ 60s |
|
|
Rated/Peak Torque (Nm) |
8950 / 21502 @ 60s |
|
|
Operating Voltage (V) |
550 |
|
|
Weight (kg) |
7500 |
|
|
Cooling Method |
Air cooling |
|
|
Transmission |
Type |
– |
|
Gearbox |
– |
|
|
Max Input Torque / Speed |
– |
|
|
Power Battery |
Voltage (V) |
850 |
|
Capacity (kWh) |
770 |
|
|
Cooling Method |
Liquid Cooling |
|
|
Heating Method |
Water Heating / Liquid Heating |
|
|
Battery System |
4-Module Integrated Cooling |
|
|
Charging |
Charging Current (A) |
720 |
|
Charging Power (kW) |
720 |
|
|
Charging Time (SOC 25%-95%) (min) |
48 |
|
|
Hydraulic System |
Dump Body Volume |
U-shaped: 2:1 |
|
SAE: 60 m³ (78.5 yd³) |
||
|
Rated Working Pressure (MPa) |
Rated Working Pressure (MPa) |
|
|
Oil Tank Capacity (L) |
– |
|
|
System Weight (kg) |
– |
|
